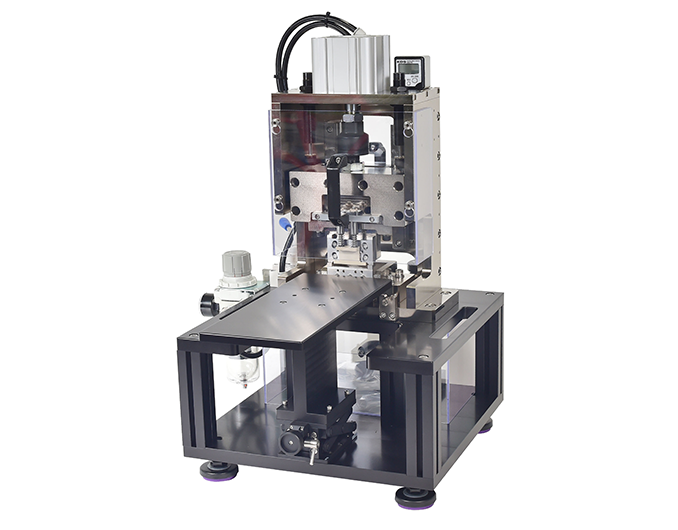

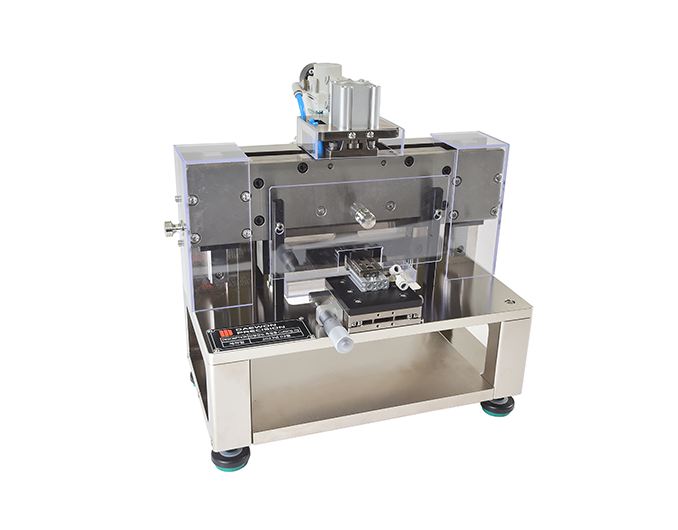

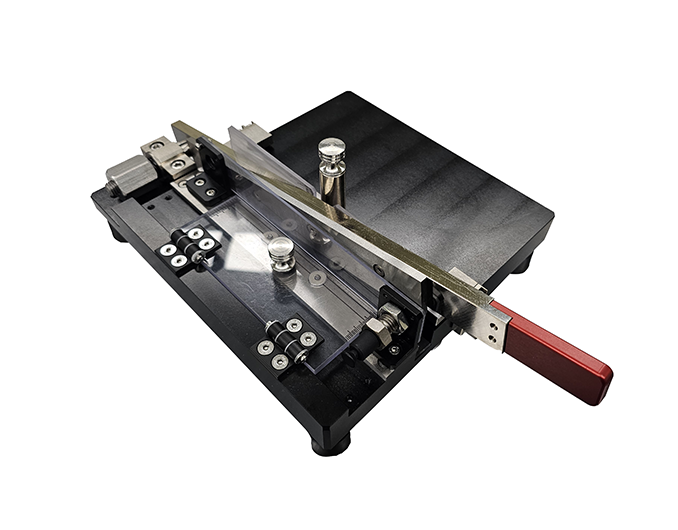

SAMPLE CUTTING JIG
A jig for cutting various sample materials
DAEWON Technology
- Customizable design to meet specific client requirements
- Safety cover installation for added protection
- Available in manual and semi-automatic (pneumatic, electric) options
- Semi-permanent lifespan for extended durability
- Proven track record in cutting electrodes, films, leads, tabs

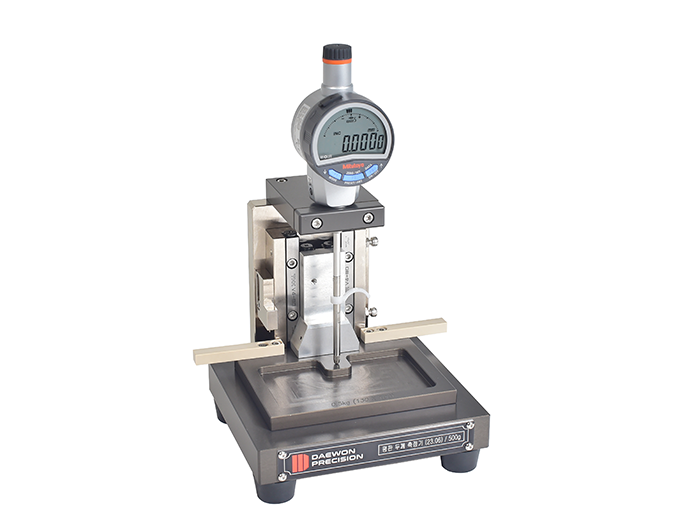

THICKNESS MEASUREMENT DEVICE
A device for measuring the thickness of products, designed to meet specific weight requirements for the top plate.
DAEWON Technology
- Achieves weight range tolerance of ±2g
- Proven manufacturing history with 270g, 350g, 500g, 1000g, and 2000g models
- Adjustable plate weight for flexibility in measurement

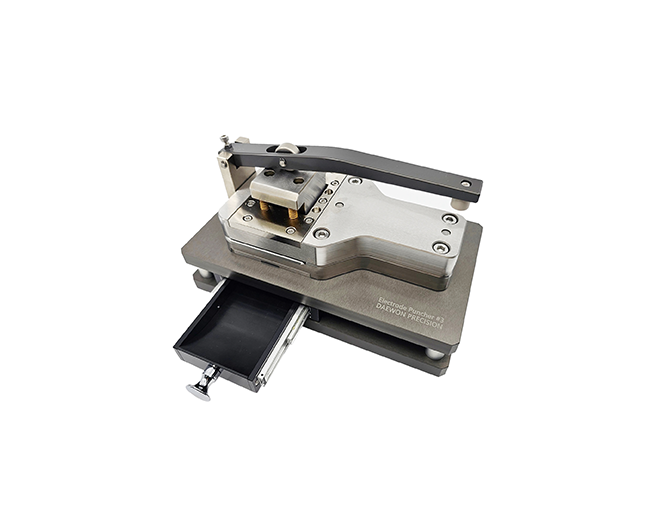

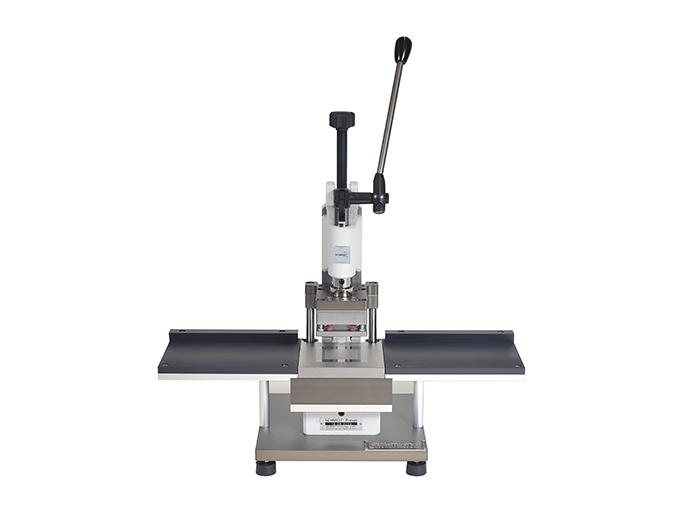

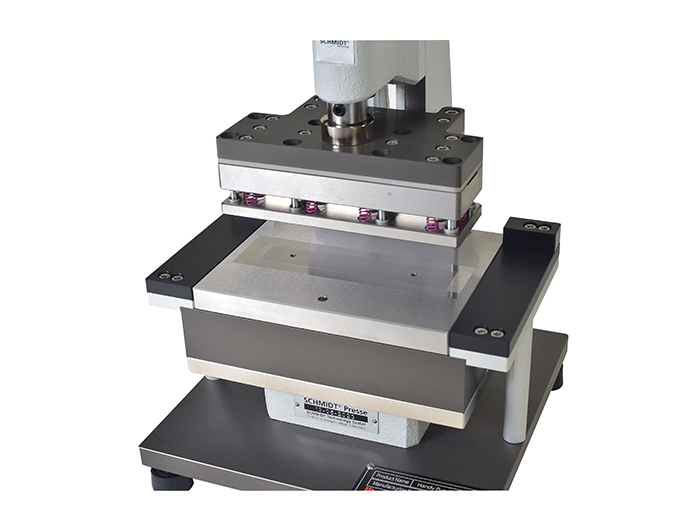

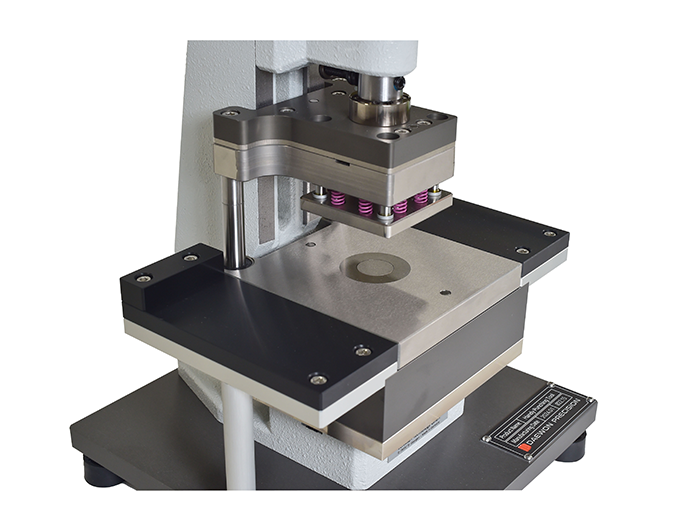

SAMPLE PUNCHING UNIT
A punching unit for electrode inspection, designed as a mold structure
DAEWON Technology
- Capable of producing various sizes including circular, rectangular, and custom shapes
- Semi-permanent lifespan for extended durability
- Cutting parts can be custom manufactured
- Hand press type / Pneumatic drive type

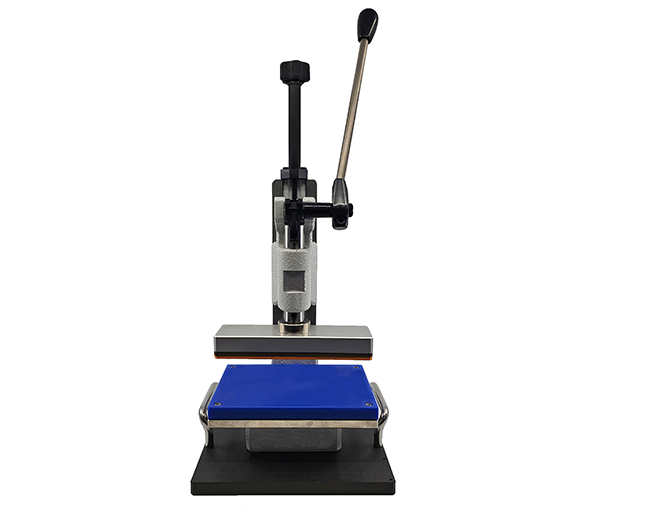

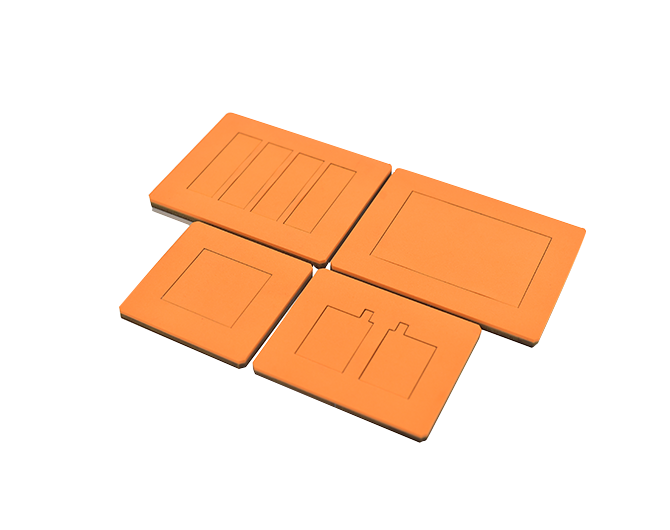

SAMPLE PUNCHING UNIT
A punching unit for electrode inspection, designed as a mold structure
DAEWON Technology
- More affordable compared to the Sample Punching Unit (Mold)
- Capable of producing various sizes, including circular, rectangular, and custom shapes
- Hand press type/ Pneumatic drive type

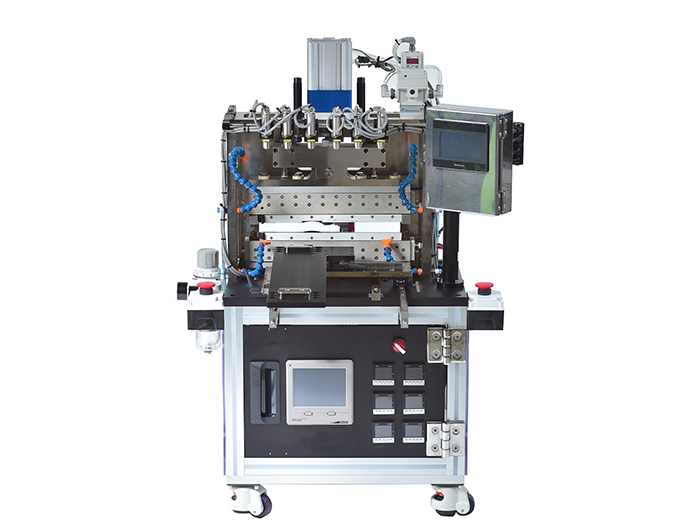

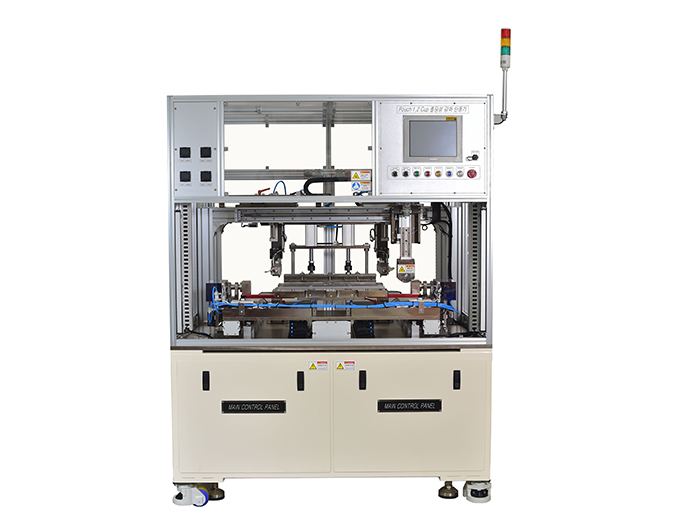

SAMPLE SEALING UNIT
A sealing unit for cell sample production
DAEWON Technology
- Customizable design to meet specific client requirements
- Experienced in producing Pouch Folding -> Sealing process units
