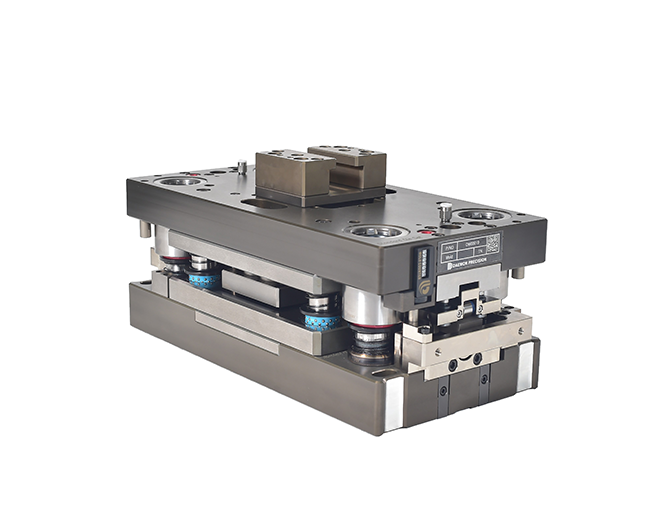

NOTCHING MOLD
A mold for creating electrode tab shape by pressing the electrode.
DAEWON Technology
- Possessing expertise in design, machining, assembly, and setup as a one-stop solution.
- Holding patented technology for adjustable clearance based on specifications.
- Tolerance management within 1 micron clearance.
- Capability to design and produce 1-8 cavity molds.
- Specialization in solid-state and next-generation batteries.
- Possessing world-class references.
- Providing customer training for disassembly/assembly of notching molds and more.

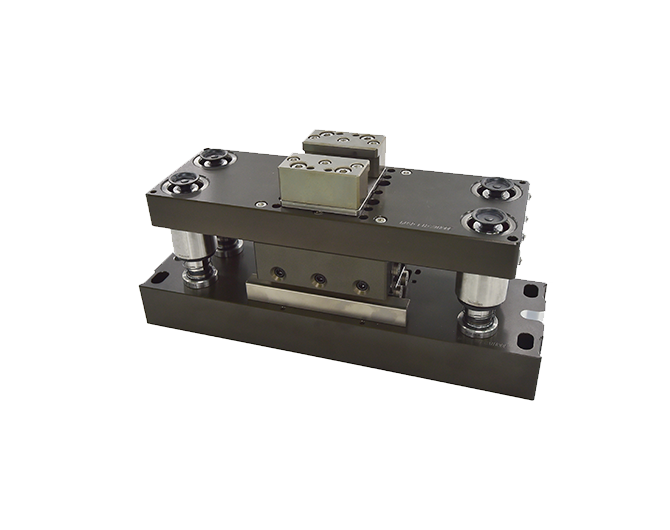

BLANKING MOLD
A mold for punching the electrode at the certain size at once.
DAEWON Technology
- Expertise in design, machining, assembly, and setup as a one-stop solution.
- Possessing patented technology for adjustable clearance based on specifications.
- Precise tolerance management within 1 micron clearance.
NOTCHING PRESS
DAEWON Technology
- Flexible Cavity Options: 1 to N Cavity for Custom Specifications
- Optimized Notching Press Technology for Diverse Product Specifications
- Enhanced Component Reliability via Premium Materials & Advanced Heat Treatment
- Anti-Tilt Technology to Maintain High Parallelism (Within 0.04 mm)
- Simulation-Based Dynamic Optimization Design
- High-Precision Machining with Strict 0.01 mm Part Tolerance Control
- High-Speed Press Operation (Max. 400 RPM)
- Proven Durability for Long-Term, Continuous Production
- Wide Range of Optional Specifications Available

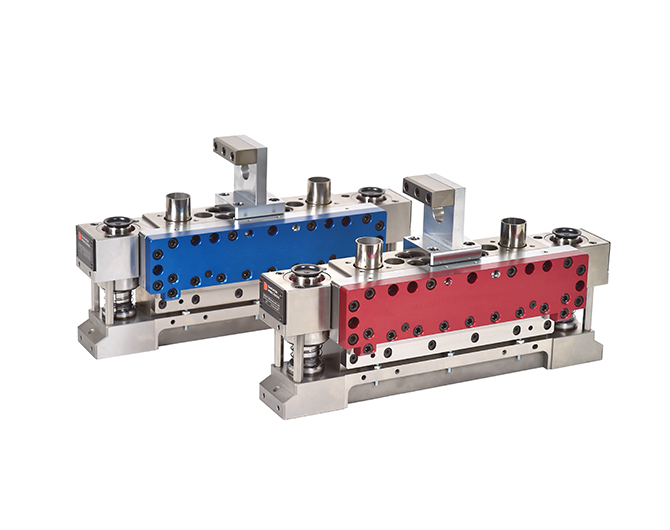

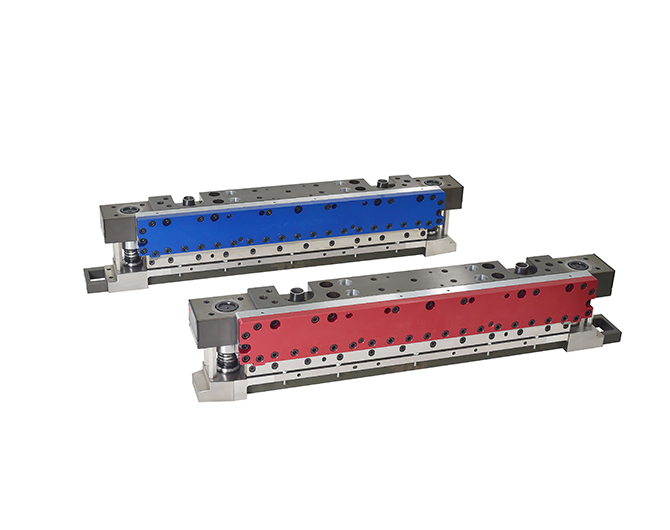

STACKING CUTTING UNIT
A unit for cutting electrodes in the longitudinal direction to match the size of the electrode cell.
DAEWON Technology
- Multiple blades(The number of blades that can be indexed)
- Possessing specialized technology for a new type of the unit, not a fixed type
- Significantly longer lifespan
- Easy maintenance
- Providing modification to the existing unit to Daewon’s
- Extensive experience in manufacturing the knives of 250 to 600m
- Separate production of knives available

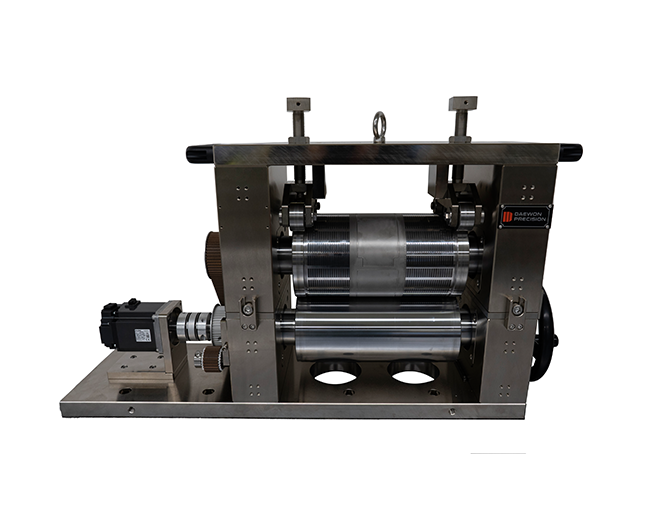

ROTARY MOLD
Designed for high-speed rotary cutting with specialized materials and structure. Ideal for continuous operations requiring durability and precision.
DAEWON Technology
Quote Contact
DUAL CUTTING MOLD
A cutting mold designed for simultaneous punching to control full electrode width. Also suitable for roll-to-sheet system configurations.
DAEWON Technology
- A high-efficiency cutting mold designed to eliminate the need for fine clearance adjustments. It supports multiple usable edges—two on the upper blades and four on the lower blades—maximizing tool life and reducing maintenance downtime.This mold is ideal for continuous production environments where precision and consistency are critical.

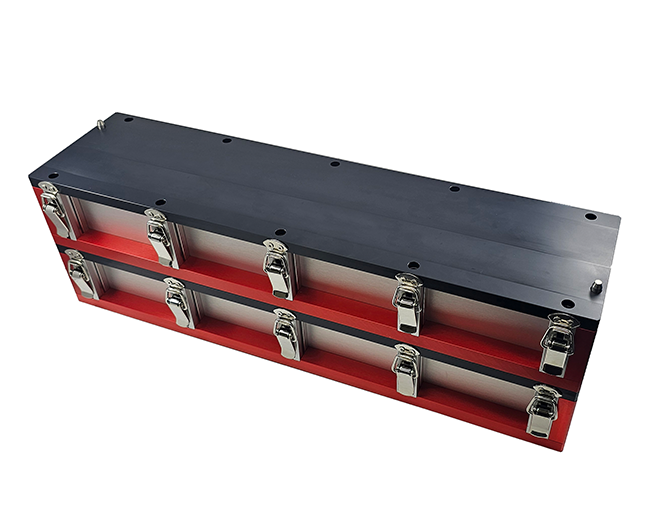

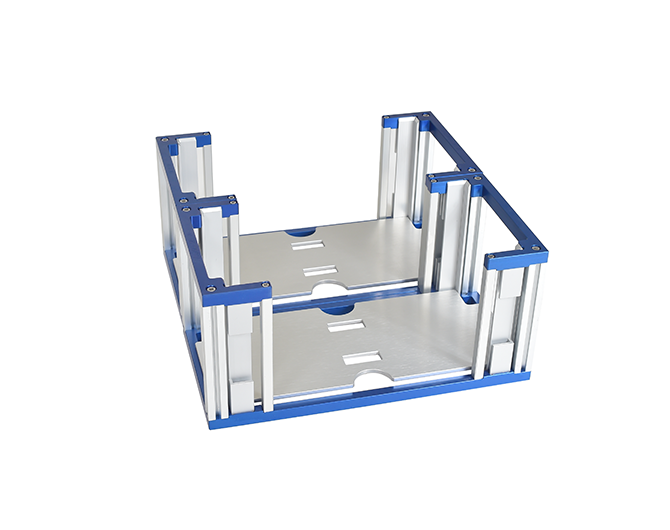

CELL MAGAZINE
Movable cell stacking storage rack.
DAEWON Technology
- Holds patents related to integrated design.
- Customized design and production available based on specifications.
